Why Diamond Measurements Can Differ Between a Lab Report and Calipers

By Tiffany Moore , Tuesday, September 22, 2026

A laboratory report and a caliper can both describe one diamond, yet they do not observe it under the same conditions. Laboratory dimensions are typically recorded with precise non-contact equipment (scans) while the diamond is loose. A later caliper reading is a contact measurement, often taken through a setting. Small differences can therefore reflect method and inherent accuracy rather than indicate a mismatch.

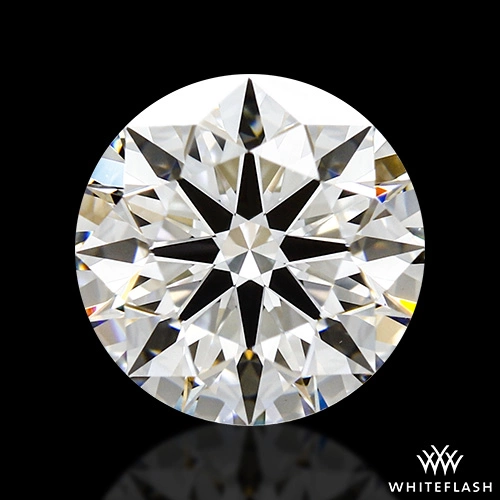

0.71 ct H VS1 A CUT ABOVE® Hearts and Arrows Diamond

Browse Diamonds

The useful comparison is whether the same dimension was measured at the same part of the diamond, with a suitable instrument and unencumbered access. The distinction matters when a shopper compares a report with a reading taken at a jewelry counter, during repair, or after an engagement ring has been worn. Dimensions describe physical size, while diamond carat describes weight, so neither substitutes for the other in an identity check.

A report measurement and a caliper measurement are different observations

Laboratory measurements are recorded while the diamond is loose and accessible from every side. The laboratory can orient the diamond consistently and scan its outline without pressing against it. On a GIA report, a round diamond is recorded as minimum diameter to maximum diameter by depth, while a fancy shape is recorded as length by width by depth. Read that notation in the context of the report format and proportion information.

Using a hand-held caliper or millimeter gauge is a manual process. Its jaws must reach the intended points, rest squarely against the diamond, and close with controlled pressure. The reading reflects the quality and condition of the instrument, the person’s technique, and the selected orientation. Suitable calipers do not recreate every laboratory condition.

BROWSE NATURAL DIAMONDS

Compare

0.71 H VS1 Round Ideal

A CUT ABOVE®

$2,275


Light Perf.
Polish
Symmetry
Depth %
Table %
Crown Angle
Star
Pavilion Angle
Crown %
Lower Girdle
Measurements
L/W Ratio
Fluorescence
Eye Clean
View Details

Compare

0.71 H VS1 Round Ideal

A CUT ABOVE®

$2,275


Light Perf.
Polish
Symmetry
Depth %
Table %
Crown Angle
Star
Pavilion Angle
Crown %
Lower Girdle
Measurements
L/W Ratio
Fluorescence
Eye Clean
View Details

Compare

1.02 I SI1 Round Ideal

A CUT ABOVE®

$3,995


Light Perf.
Polish
Symmetry
Depth %
Table %
Crown Angle
Star
Pavilion Angle
Crown %
Lower Girdle
Measurements
L/W Ratio
Fluorescence
Eye Clean
View Details

Compare

0.82 F SI1 Round Ideal

A CUT ABOVE®

$2,850


Light Perf.
Polish
Symmetry
Depth %
Table %
Crown Angle
Star
Pavilion Angle
Crown %
Lower Girdle
Measurements
L/W Ratio
Fluorescence
Eye Clean
View Details

Show All

For a round diamond, one report value is the smallest girdle-to-girdle span and another is the largest. A single caliper reading captures only one chord across the outline. A result between the recorded minimum and maximum may be fully consistent with the report. Comparing one isolated reading with only one of those values can manufacture a discrepancy.

The same principle applies to depth. A loose diamond can be positioned for the intended table-to-culet reading. In a setting, the culet or pavilion may be hidden and require an estimate, or the metal may become the contact point. A measurement that includes metal or is an estimation is obviously not a precise measurement.

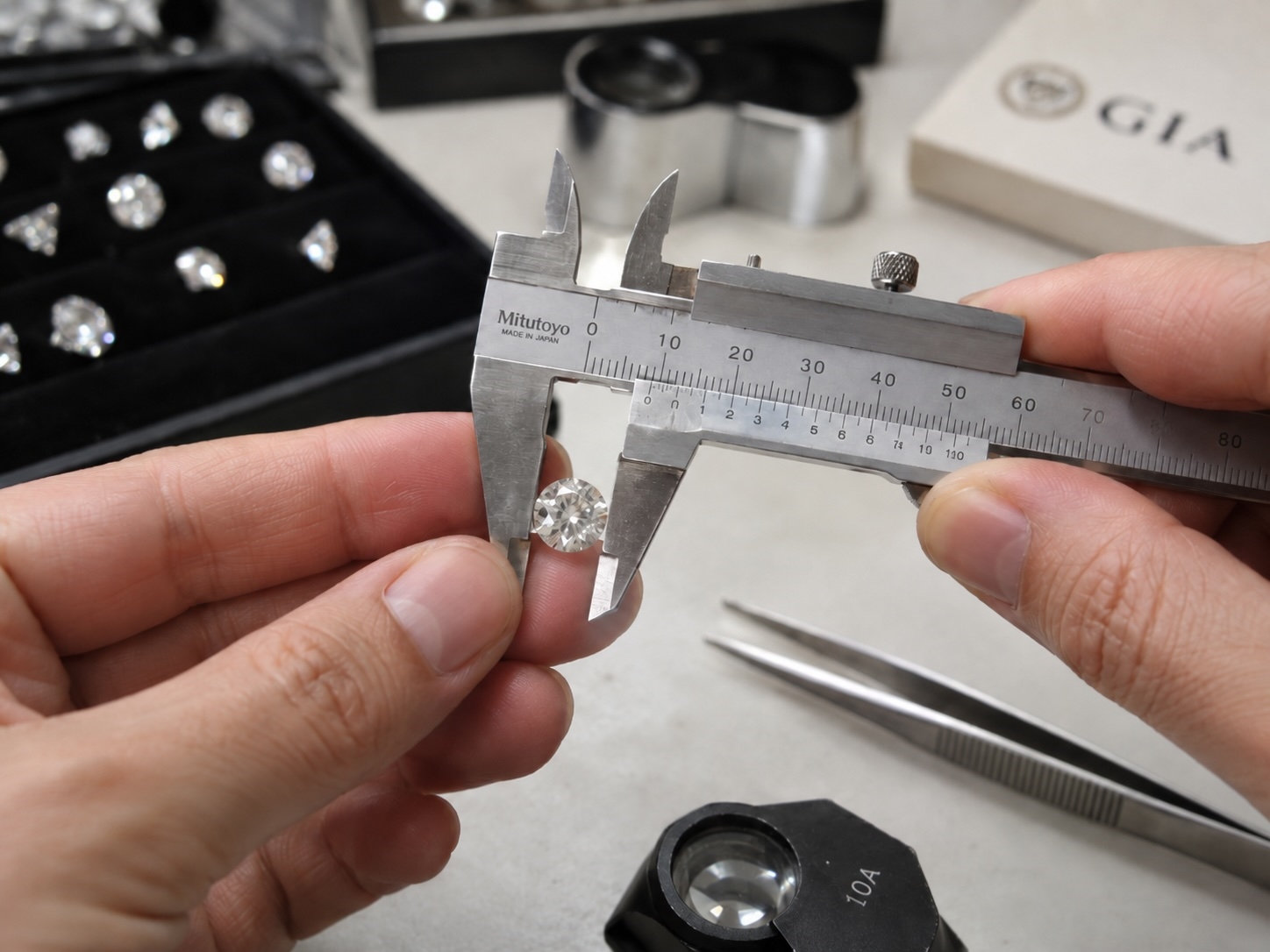

Jeweler using a precision caliper to measure the diameter of a loose round brilliant diamond.

A loose round brilliant diamond being measured with a caliper

Why the numbers can differ in ordinary practice

A difference becomes understandable when its mechanism is visible. The table below separates routine measurement variables from observations that need a more structured follow-up.

Practical cause	How it changes a reading	What makes the comparison more reliable
Report rounding or display precision	A report presents recorded dimensions to its stated display precision. A tool may show fewer or more digits, while the underlying physical dimension remains the same.	Compare values at the precision actually displayed. Do not treat an extra digit on a tool as a more meaningful identity marker.
Calibration and resolution	A caliper that is not zeroed, is worn, damaged, or unable to resolve a fine change can produce an inaccurate reading.	Use a suitable, clean instrument, check its zeroing before use, and have a professional confirm calibration when readings matter.
Contact pressure	Closing jaws firmly can change their resting position or cause them to slip from the intended girdle edge. Light contact can also settle differently from one attempt to the next.	Close the jaws gently and consistently. Record repeated readings rather than relying on a single closure.
Different girdle points	A diamond is not measured from an abstract center line. Jaws contact actual points on a girdle that may vary in thickness, finish, or outline.	Mark or describe the orientation, then repeat across the same points and at several rotations when the diamond is loose.
Minimum versus maximum diameter	A round report records minimum and maximum diameter values, while a caliper usually captures one orientation at a time.	Compare a series of diameter readings with the report’s minimum and maximum, not just one reading with one endpoint.
Girdle irregularity or out-of-round variation	Slight variation around the outline can make readings change as the diamond turns. It can be visible even where the overall shape appears round.	Look for a logical spread of readings across the reported minimum-to-maximum span rather than expecting every orientation to produce one number.
Mounted-diamond obstruction	Prongs, a bezel, gallery structure, and adjacent diamonds can prevent jaw placement at the true edges.	Treat the result as an approximate setting-level observation. Do not use it as a substitute for loose-diamond measurement.

Rounding and instrument precision are not the same thing

Report rounding and caliper resolution arise at different stages. A laboratory can measure with a non-contact system, then record with rounded accuracy. Extra digits on a caliper do not add confidence unless the jaws reach the same points and the instrument was checked. The dimension line belongs alongside the diamond certification record, not as a pass-or-fail test.

Diameter changes with orientation

A round brilliant can be close to circular without producing the exact same caliper span at every rotation. The report’s minimum and maximum diameter acknowledge variation in the outline. Girdle variation, small differences in the outline, and the exact points where the jaws settle all contribute to what is observed.

Example GIA Report (click to enlarge)

Turn a loose round diamond through several positions while keeping the jaws parallel to the girdle plane. The readings may form a sensible progression between the reported endpoints. A repeatable result outside that pattern deserves attention after instrument, orientation, and access conditions have been ruled out. The broader relationship among dimensions and proportions is addressed in diamond measurements.

Mounted diamonds need a separate standard of caution

A mounted diamond is the leading limitation in a report-versus-caliper comparison. Prongs can cover the girdle or push the jaws outward, and a bezel can obscure the perimeter. Dirt, residue, metal reflections, nearby diamonds, and an angled line of sight can make the true edge difficult or impossible to see and introduce parallax.

Those constraints do not make a mounted inspection useless. A jeweler may identify an obviously inaccurate reading, assess whether the visible outline is consistent with the reported shape, and compare accessible features. They do mean that caliper measurements over a mounted diamond are not a substitute for actual loose-diamond measurement. The jaws may be measuring a combination of diamond, metal, and access limitations.

The setting changes what is accessible. Four-prong and six-prongdiamond settings may leave girdle areas visible, but not at the report’s minimum or maximum positions. A bezel, halo, protective gallery, or low-set design can prevent a reliable outside measurement and require an estimate or interpolation. Cleaning may improve visibility, but cannot create clearance.

Platinum Valoria Petite Six Prong Solitaire Engagement Ring

Record mounting conditions with the result. “Measured in ring, opposite prongs, true girdle partly obscured” is more useful than a bare number because it identifies an approximate screening observation.

Fancy shapes add an orientation question

A fancy shape has a direction as well as an outline. Its report lists length, width, and depth, but the user must identify each physical axis. With an oval, pear, marquise, emerald, radiant, cushion, or rectangular modified brilliant, a slight off-axis placement changes the observed span. The widest point may not be visually obvious where shoulders curve or corners are clipped.

Length is read along the long axis and width across the widest transverse axis. Depth is perpendicular to the table and culet region. A narrower shoulder can be mistaken for width, while a prong or bezel can shorten apparent length. With a pear or marquise, the point may be hidden or vulnerable to jaw slip.

For a square or rectangular outline, a diagonal across corners is not the report width. On rounded-corner shapes, facet junctions can appear to be the edge under reflection. Diamond shapes help establish the axes, but do not overcome mounted access limits.

Shape /situation	Reading that is often compared incorrectly	Better comparison
Round diamond	One caliper diameter versus only the report minimum or only the maximum	Several girdle-level spans versus the report’s stated minimum-to-maximum diameter values
Oval, emerald, radiant, or cushion	An off-axis span called width, or a diagonal called length	Long-axis length and widest side-to-side width, taken with the orientation recorded
Pear or marquise	A protected point or prong edge counted as the tip	Accessible diamond-to-diamond span, with the limitation noted if either point is covered
Mounted diamond of any shape	Outside metal-to-metal or prong-to-prong span	A qualified visual comparison only, followed by loose measurement if exact dimensions are needed
Depth in a setting	Table-to-setting or table-to-gallery distance	Loose-diamond depth measurement by a professional instrument and method

BROWSE LAB GROWN DIAMONDS

Compare

1.06 D VVS1 Round Ideal

Precision Lab Diamond

$1,326


Light Perf.
Polish
Symmetry
Depth %
Table %
Crown Angle
Star
Pavilion Angle
Crown %
Lower Girdle
Measurements
L/W Ratio
Fluorescence
Eye Clean
View Details

Compare

1.06 D VVS1 Round Ideal

Precision Lab Diamond

$1,326


Light Perf.
Polish
Symmetry
Depth %
Table %
Crown Angle
Star
Pavilion Angle
Crown %
Lower Girdle
Measurements
L/W Ratio
Fluorescence
Eye Clean
View Details

Compare

1.08 D VVS2 Round Ideal

Precision Lab Diamond

$1,030


Light Perf.
Polish
Symmetry
Depth %
Table %
Crown Angle
Star
Pavilion Angle
Crown %
Lower Girdle
Measurements
L/W Ratio
Fluorescence
Eye Clean
View Details

Compare

1.08 D VVS1 Round Ideal

Precision Lab Diamond

$1,340


Light Perf.
Polish
Symmetry
Depth %
Table %
Crown Angle
Star
Pavilion Angle
Crown %
Lower Girdle
Measurements
L/W Ratio
Fluorescence
Eye Clean
View Details

Show All

A disciplined way to diagnose the difference

Begin by separating what is known from what was estimated. The sequence below avoids treating an initial reading as a verdict.

Establish whether the diamond is loose or mounted. A loose diamond permits a direct dimensional comparison. A mounted diamond requires the observer to state what is blocked, which points were accessible, and whether metal could have entered the reading.
Identify the exact report dimensions being compared. Confirm the shape and notation. For a round, distinguish the minimum diameter, maximum diameter, and depth. For a fancy shape, identify the stated length, width, and depth. Review the complete GIA diamond report rather than relying on a copied number or a remembered measurement.
Use a suitable instrument and consistent orientation. Check that the caliper or millimeter gauge closes to zero, keep the jaws clean, and use light, repeatable contact. For a loose diamond, rest the jaws at the girdle and keep them square to the intended axis. Do not force a depth reading where the culet or pavilion cannot be reached.
Repeat and document the observations. Take multiple readings from the same orientation before changing the orientation. Then record additional positions that correspond to the report notation. A stable set of readings is more informative than the highest or lowest number encountered.
Interpret the size and pattern of the discrepancy. Minor movement that changes with jaw placement, rotation, or access usually points first to normal measurement variation. A repeatable difference with a suitable instrument and clear loose-diamond access deserves closer review when report precision, instrument condition, orientation, and access do not explain it. Do not create a universal numeric tolerance.
Use report data and other identifying features together. Dimensions are only one identifier among several. Compare the reported shape, carat weight, clarity characteristics where available, fluorescence notation, comments, and any distinctive proportion data. Diamond clarity information and a plotted diagram can add crucial verification.
Choose the appropriate professional review. A jeweler or gemologist can improve the measurement conditions and assess a loose diamond. A laboratory may be appropriate when formal confirmation is needed. For a broader independent inspection of a piece and its documentation, a qualified professional providing diamond appraisals can define the scope of the review.

Practical measurement log

Field	What to record	Why it matters
Diamond condition	Loose or mounted, plus setting style and visible obstructions	Establishes whether direct measurement was possible
Report dimension	Exact report notation and each component being compared	Prevents a minimum, maximum, length, width, or depth mix-up
Instrument	Caliper or gauge type, displayed resolution, zero check, and visible condition	Identifies an equipment limitation before interpreting the number
Contact location	Girdle points, long axis, width axis, or any blocked edge	Makes the orientation repeatable
Reading series	Each consecutive reading, not only an average	Reveals instability, rotation effects, and repeatability
Visibility notes	Dirt, reflections, parallax, prongs, bezel, or inaccessible culet	Distinguishes an approximate mounted reading from a direct one
Next action	Repeat, clean and recheck, professional loose measurement, or identity review	Keeps the result proportional to the evidence

What the pattern may mean

Patterns are more useful than a single deviation because they show whether the instrument and diamond behave consistently. The following table is diagnostic rather than a tolerance chart. It avoids a universal cutoff because shape, access, report notation, and equipment quality all affect what can be reasonably compared.

Observed pattern	Plausible first explanation	Appropriate next step
Readings change slightly when the jaws are repositioned, but remain within a sensible relationship to the report notation	Contact point, light pressure, display precision, or normal outline variation	Repeat with consistent orientation and record the series
A round diamond produces different diameters as it is rotated, with values that relate logically to the report minimum and maximum	The report records minimum and maximum diameter values, not one all-purpose diameter	Compare the full series with both report endpoints
The reading differs only while the diamond is mounted or only near prongs or a bezel	Metal interference, accessibility, reflections, or parallax	Treat it as approximate and seek loose measurement if exact comparison is necessary
Length and width seem reversed or vary when a fancy shape is turned	Axis selection or off-axis jaw placement	Re-establish the long axis and widest width before comparing
The same unexplained difference repeats on a loose diamond with suitable equipment and the correct orientation	Report precision, instrument condition, orientation, and access do not account for the result	Have a qualified jeweler, gemologist, or laboratory inspect the diamond and report together
Dimensions show repeatable unexplained differences and other identifying features also conflict	The measurement issue may be part of a broader identity question	Stop relying on calipers alone and obtain professional identity review

Measurements work best alongside other identifiers

The report number, shape, dimensions, carat weight, and visible clarity characteristics combined form a more useful set than any one factor. On a loose diamond, note whether reported inclusions, comments, and fluorescence are consistent with the diamond. A close dimensional match alone does not prove identity.

A laser inscription can be an additional identity check, although it may require magnification and favorable access. It supports, rather than replaces, measurement and observation. Similarly, a GIA report-number check can confirm a document record with its issuing laboratory. These are complementary checks, not substitutes for a careful physical inspection

With loose diamonds, full access makes the comparison more direct. After construction, engagement ring settings may change future visibility and access without changing the diamond.

When professional inspection is the right next step

Seek a jeweler or gemologist when a loose-diamond measurement needs suitable equipment, a setting prevents access, or report notation is unclear. Ask whether the observation was loose or mounted and whether it is a direct dimension or a setting-based estimate.

A laboratory review may be appropriate if controlled loose-diamond readings remain inconsistent after report precision, instrument condition, orientation, and access have been considered. A qualified appraisal professional can document the jewelry piece, but measurement diagnosis is different from assigning value.

Avoid removing a diamond from a mounting solely for an informal caliper comparison. Removal and resetting have costs and risks. For many mounted pieces, review accessible features and report data first.

Platinum Custom Three Stone Diamond Engagement Ring with Tapered Baguettes

Frequently asked questions

Do small caliper differences mean the report and diamond do not match?

No. Small differences can result from instrument quality or condition, calibration, jaw placement, pressure, a different girdle point, or setting access. Repeat the appropriate like-for-like comparison. Seek closer review only when the difference repeats after those conditions have been accounted for or other identifiers conflict.

Why does my round diamond report show two diameter numbers while my caliper shows one?

The report records minimum and maximum diameter, followed by depth. Your caliper captures one span at one orientation. Turn the diamond to compare a series of diameters with the reported minimum and maximum values, rather than asking one reading to equal both report numbers.

Can I measure a diamond accurately while it is mounted in a ring?

A mounted reading is approximate, not a replacement for loose-diamond measurement. Prongs, bezels, dirt, inaccessible edges, and viewing angle can prevent correct jaw placement. Depth is especially difficult or impossible when the pavilion and culet are obscured.

Should I use the highest caliper reading for a fancy shape?

No. The highest span may be diagonal, off-axis, or influenced by the setting. Establish length, width, and depth axes first, then record the orientation with each reading.

Is there an acceptable measurement tolerance?

No universal numeric tolerance applies. Report display precision, instrument resolution, orientation, contact points, shape, and mounting access all change what can be compared. Repeat like-for-like loose measurements, then seek professional review if a difference remains unexplained.

Is a laser inscription a better test than a caliper reading?

They answer different questions. An inscription supports identity checking, while calipers assess dimensions. Neither is a complete identification on its own. A qualified professional can compare several identifiers if the issue remains unresolved.

When is an appraisal professional relevant to a measurement discrepancy?

An appraisal professional can help with an independent inspection of a piece and its documentation after a repeatable discrepancy is identified. State whether you need loose-diamond measurement, report comparison, broader identity review, or documentation so the scope stays focused.

When a repeatable discrepancy remains after a like-for-like comparison, have a qualified jeweler, gemologist, or laboratory review the diamond and report together before drawing an identity conclusion.
