Ring Shank Width vs. Thickness: What Controls Strength and Comfort?
By
Tiffany Moore , Tuesday, September 29, 2026
Two rings can look equally slim from above yet feel different on the hand and respond differently to everyday wear. The missing information is often the shank's second dimension. Width describes how much of the band you see across the length of the finger. Thickness, sometimes called depth, describes how far the metal extends from the inner surface toward the outer surface. Both matter, but neither is a standalone measure of strength or comfort.
14k Yellow Gold Verragio V-999DBOV-1.2 Diamond Engagement Ring
Measure both dimensions at more than one point, especially where the finished band is narrowest. A top-view width alone cannot show how much metal remains at the base or around accent stones.

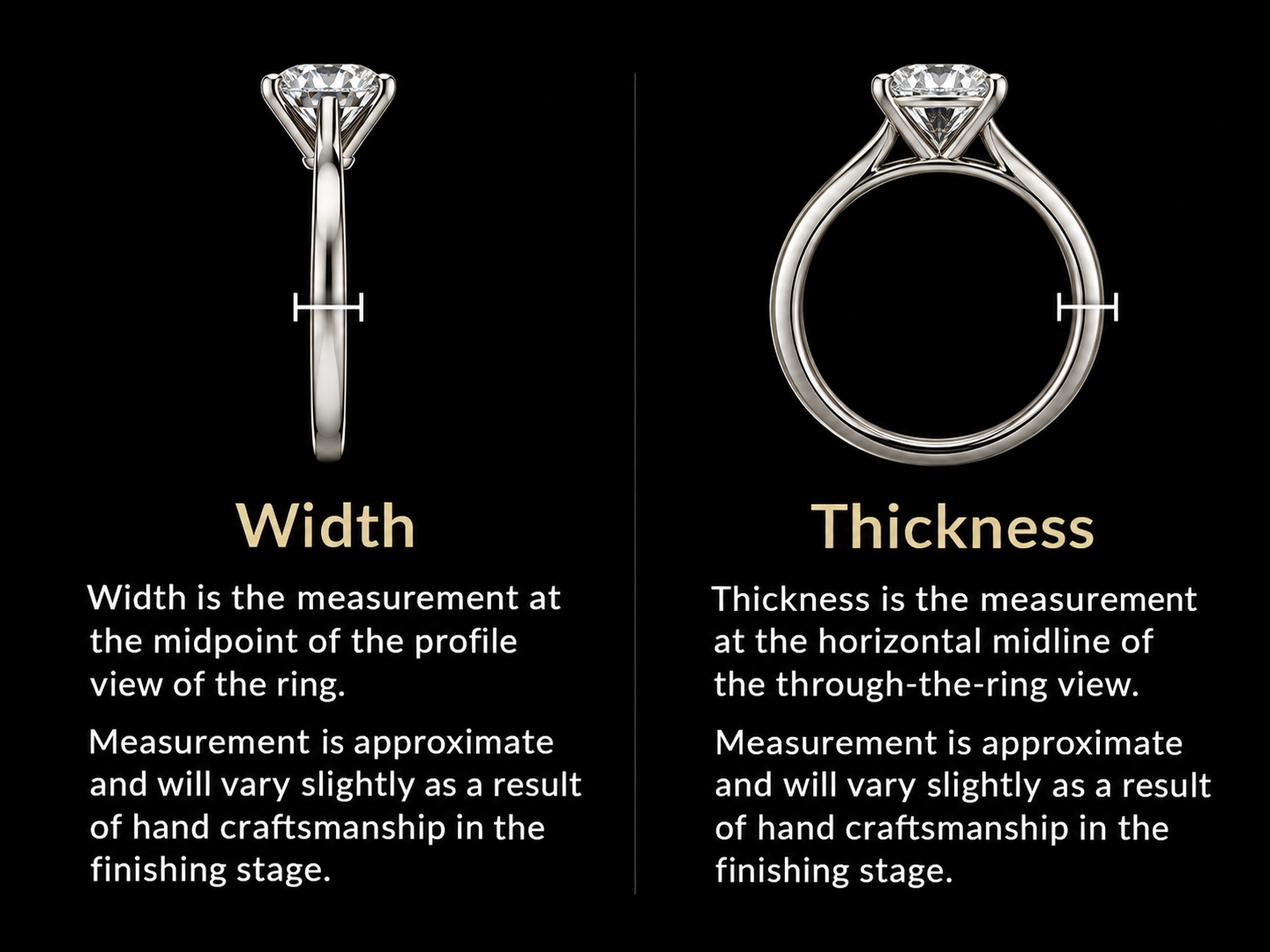

Width and Thickness Are Different Measurements
The shank is the portion of the ring that circles the finger. Look straight down at a plain band while it is on the hand: the distance from one side edge to the other is its width. Look at a cross-section of that band from the side: the distance from the finger-facing interior to the outside surface is its thickness.
|
Dimension
|
Where to measure
|
What it tends to change
|
What it cannot establish alone
|
|
Width
|
Across the band, from side edge to side edge
|
Visible coverage, contact area, and the room available for design details
|
Total strength or whether the ring is correctly sized
|
|
Thickness
|
From the inside surface to the outside surface
|
Side-profile bulk and the amount of metal in that direction
|
Comfort, durability, or clearance with another ring
|
These are measurements of the metal at a particular location. A setting may be wide at its shoulders and narrow at the base, or thick near the center stone and thin behind the finger. The dimension shown in a product description may not describe those transitions. Ask where the measurement was taken and whether it refers to the finished ring, after polishing and stone setting.
ENGAGEMENT RING SEARCH
Item Code: 1991
Platinum Vatche U-113 6-Prong Solitaire Engagement Ring
Price:
$2,100
*Center diamond not included in price
Item Code: 11181-075
Platinum Tacori 2584RD Simply Tacori Flat-Edge Solitaire Engagement Ring For 0.75ct Center Diamond
Price:
$2,790
*Center diamond not included in price
Item Code: 11312
14k White Gold Verragio Renaissance 939R7 Solitaire Engagement Ring
Price:
$2,760
*Center diamond not included in price
Item Code: 12202
14k White Gold Valoria Cathedral Hidden Halo Solitaire Engagement Ring
Price:
$1,525
*Center diamond not included in price
Why the Cross-Section Matters More Than One Number
Imagine cutting through a plain section of shank and looking at its outline. A flat rectangular band, a softly rounded band, and a knife-edge band can share the same maximum width while placing different amounts of metal in different parts of that outline. A dimension measured at the widest point therefore does not tell the whole structural story.
When a ring is squeezed or bent, its resistance depends on the direction of the force and how the metal is distributed across the cross-section. Thickness can be especially influential for bending in one direction, while width matters for bending in another. The simplified rule that a thicker band is always stronger ignores the load direction, metal type, workmanship, and any parts of the shank that have been cut away. A broad but very thin band is not automatically sturdier than a narrower, deeper one.

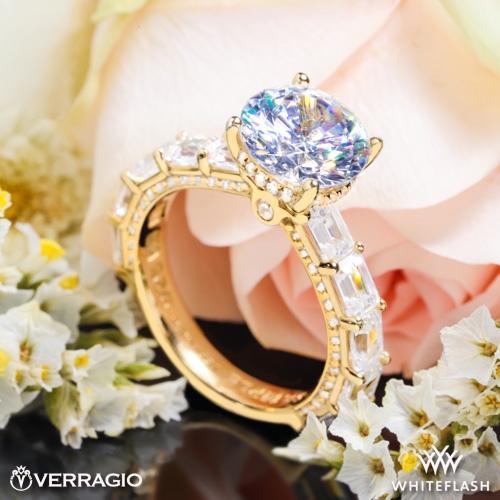

14k Yellow Gold Verragio ENG-0492R Diamond Engagement Ring
The base of the shank, tapered shoulders, split-shank junctions, engraving, and stone seats or azures may each create a thin point or an abrupt transition. Check those places before treating the widest visible area as a strength indicator.
What Width Changes on the Hand
Width is the most apparent dimension in a top-down photo. It affects how substantial the ring looks, how much finger it covers, and how much surface is available for a plain finish, engraving, or accent stones. A wider shank may visually balance a larger head; a tapered shank can make the center setting appear more prominent without keeping the same width around the entire finger.
Width also changes the contact area against the finger. A wider band may feel more present than a narrow one at the same nominal ring size, particularly when worn beside a
wedding band. That does not mean a fixed size adjustment applies to every wide ring. Interior contour, total combined width, finger shape, and the actual sample being tried on all matter. Understanding
how an engagement ring should fit requires checking sizing and movement, not judging from width alone.
14k White Gold Custom 3 Stone Engagement Ring
The side edges deserve attention too. An abrupt, sharp-feeling edge can be noticeable even when the numerical width seems modest. A softened edge changes the look without necessarily changing its stated maximum width.
What Thickness Changes in the Side View
Thickness is easiest to assess from a side-profile photo or a measured cross-section. More depth can make a plain section of shank less slender in profile and change how the ring sits next to another band. Less depth may look delicate, but if the ring is already thin where it takes wear, removing more metal for a lower profile can reduce the material available to resist deformation or future polishing.
Thickness is not necessarily a comfort indicator. A relatively deep band with a gently rounded interior may feel different from a shallower band with a flat interior and pronounced edges. The finger touches the interior shape, not a specification sheet. Thickness measures depth, while a
comfort-fit interior describes a rounded finger-facing contour.
Platinum Custom Three Stone Diamond Engagement Ring with Tapered Baguettes
On a diamond-set shank, an outside-depth measurement may include the area occupied by stone seats. Setting stones removes or displaces metal locally, so the remaining cross-section may be smaller than the external dimensions suggest. Ask about the finished metal beneath and beside the stones, especially at the narrowest section. Metal type and alloy affects wear and service decisions too, so consider
gold, platinum, and other precious metals alongside the shank's geometry.
Where to Measure a Tapered or Detailed Shank
A useful comparison records both dimensions at more than one point. At minimum, look at the base behind the finger and both shoulders near the head. For a tapered design, also check the transition between these areas. If the shank splits, note the size of each branch and where the branches rejoin. If it carries
pavé or engraving, consider the narrowest finished section, not just the outside envelope.
Measurements should be interpreted alongside the shape. A domed top, a flat exterior, and a knife-edge ridge can produce the same maximum width but different edge and center thicknesses. Product photos from above and from the side help reveal those differences; a close view of the underside shows whether the shank stays substantial or tapers sharply at the base.
Platinum Tacori HT2676 RoyalT Diamond Engagement Ring
Wear changes the picture over time. On an older ring, years of contact and/or polishing can leave the back of the shank thinner than it was originally.
A thinning shank may need repair or partial replacement. A current measurement, not an original catalog dimension, is the relevant one when assessing an existing ring.
Strength Is a Design Question, Not a Universal Millimeter Rule
There is no universal millimeter cutoff that makes every engagement ring durable. Metal type, ring size, profile, taper, stone seats, and wear condition all change what a given measurement means.
Instead, compare the minimum effective cross-section and its transitions in the finished ring. A narrow section beside a larger, rigid head may behave differently from a narrow section in a plain continuous band. A split shank distributes metal among branches; the relevant question is how those branches connect and how much material remains at their junctions. Even a visually wide shank can have a vulnerable location after stone seats, deep engraving, or repeated refinishing.
14k Yellow Gold Valoria Four Prong Solitaire Engagement Ring
More metal is not always the best answer. Adding width or thickness changes appearance, weight, and the way the ring feels. The aim is a balanced design with adequate material in the locations that need it, not the largest possible dimensions everywhere. A qualified jeweler should evaluate the actual setting if durability is the deciding concern.
How to Compare Two Rings Without Guessing
Start with the same views for each ring: top, side, and underside. Record width and thickness at the base and shoulders, and identify any point that narrows further. Confirm whether the listed specifications describe the finished piece or a pre-finished model. Do not assume that two rings with the same top-view width have the same profile or remaining metal.
Next, look for interruptions. Accent-stone seats, decorative grooves, openwork, and deep engraving all have an effect. Compare the interior contour and edge finish separately from the exterior dimensions. If the ring will sit beside a wedding band, try the combination together or ask for a side-by-side profile view;
wedding-band width can change both perceived coverage and contact with the finger.
14k Yellow Gold Custom Emerald Diamond Ring with Trapezoid Side Stones
Finally, consider how the ring will be worn. Frequent pressure on the hands, repeated contact with hard surfaces, and plans to resize or refinish later are relevant to the design conversation. Ask the jeweler to explain the trade-off at the narrowest finished point. Check the size and how the finished ring moves on the finger separately from this structural comparison.
The Whiteflash Approach to Comparing Shank Geometry
Start with the actual setting under consideration. Compare its top and side views, ask where the dimensions were measured, and check whether a taper, accent stones, or a wedding band changes the finished profile.
Compare
designer engagement rings from the top and side to see how their shank profiles differ. If two settings look similar from above, ask for their base and shoulder dimensions before deciding which better suits your priorities.
Frequently Asked Questions
Is a wider ring shank always stronger?
No. Width adds material in one direction, but bending resistance depends on the direction of force and the entire finished cross-section. A wide shank with a thin base, deep stone seats, or an abrupt taper may have a weaker area than its top-view width suggests.
Does a thicker shank always feel less comfortable?
No. Thickness describes the distance between the inside and outside surfaces, while comfort depends heavily on the interior contour and edge finish. Two rings with the same thickness can feel different on the same finger. Try the actual profile when possible.
14k Yellow Gold Custom Three Stone Ring
What is a safe ring shank thickness in millimeters?
There is no single safe number for every setting. Metal type, ring size, profile, stone setting, taper, and intended wear all affect the assessment. Ask for the thickness at the narrowest finished section and have a qualified jeweler evaluate that location in the context of the complete design.
Why can two bands with the same width look different?
Width is only one measurement. Differences in thickness, rounded or flat surfaces, edge treatment, taper, and interior contour change the band from the side and on the hand. Compare top, side, and underside views rather than relying on a single specification.
Should I compare width and thickness before choosing a ring size?
Yes, but do not use either dimension as your sole guide. Band width and interior profile can change how a given size feels. Once you identify the setting and any wedding band worn with it, check fit using the actual profile or a close equivalent.
The Bottom Line
Width describes the shank across the length of the finger; thickness describes its depth from inside to outside. Both influence the ring, but the finished cross-section, its narrowest points, and its interior shape are what make a comparison meaningful. Use measurements at the base and shoulders, inspect the ring from several angles, and discuss the complete design with a jeweler before choosing between similar-looking settings.
