A loose diamond and an engagement ring setting meet at the head. That is where the diamond's girdle, outline, depth, and vulnerable points must be placed in a proper seat and prong layout.
14k Yellow Gold Valoria Four Prong Solitaire Engagement Ring
Carat weight alone does not determine the fit. The setting may have a defined center-diamond size range, head geometry, gallery structure, and shape-specific seat, while the selected diamond has its own millimeter measurements, girdle, depth, and outline.
Once both pieces have been selected, compatibility becomes a construction question about that exact pairing. The review asks whether the head accepts the shape and dimensions, whether exposed points or corners receive suitable support, and whether the finished profile accommodates the intended wedding band and the way the ring will be worn. Product specifications and the jeweler’s craftsmanship remain the controlling factors; the checks below identify the details that should accompany an order-stage review.
Begin With the Actual Diamond and Actual Setting
Keep the detail page for the loose diamond beside the detail page for the setting. Filter
loose diamonds by shape, carat, measurements, length-to-width ratio, polish, symmetry, and report details. The
engagement-ring settings can then be narrowed by diamond shape, setting type, metal, ring width, and center-diamond size.
BROWSE NATURAL DIAMONDS
0.71 H VS1 Round Ideal
A CUT ABOVE®
$2,275
|
|
| Light Perf. |
|
| Polish |
|
| Symmetry |
|
| Depth % |
|
| Table % |
|
| Crown Angle |
|
| Star |
|
| Pavilion Angle |
|
| Crown % |
|
| Lower Girdle |
|
| Measurements |
|
| L/W Ratio |
|
| Fluorescence |
|
| Eye Clean |
|
|
View Details
|
|
0.71 H VS1 Round Ideal
A CUT ABOVE®
$2,275
|
|
| Light Perf. |
|
| Polish |
|
| Symmetry |
|
| Depth % |
|
| Table % |
|
| Crown Angle |
|
| Star |
|
| Pavilion Angle |
|
| Crown % |
|
| Lower Girdle |
|
| Measurements |
|
| L/W Ratio |
|
| Fluorescence |
|
| Eye Clean |
|
|
View Details
|
|
1.02 I SI1 Round Ideal
A CUT ABOVE®
$3,995
|
|
| Light Perf. |
|
| Polish |
|
| Symmetry |
|
| Depth % |
|
| Table % |
|
| Crown Angle |
|
| Star |
|
| Pavilion Angle |
|
| Crown % |
|
| Lower Girdle |
|
| Measurements |
|
| L/W Ratio |
|
| Fluorescence |
|
| Eye Clean |
|
|
View Details
|
|
0.82 F SI1 Round Ideal
A CUT ABOVE®
$2,850
|
|
| Light Perf. |
|
| Polish |
|
| Symmetry |
|
| Depth % |
|
| Table % |
|
| Crown Angle |
|
| Star |
|
| Pavilion Angle |
|
| Crown % |
|
| Lower Girdle |
|
| Measurements |
|
| L/W Ratio |
|
| Fluorescence |
|
| Eye Clean |
|
|
View Details
|
|
Filters help assemble a starting pair, but the individual product pages establish whether it can be made as intended. A setting listing may state accepted shapes, center-diamond size guidance, prong count, and mounting dimensions. The diamond report records shape, carat weight, millimeter measurements, girdle, depth, and other characteristics of the exact diamond, while the listing supplies the associated video and photographs. If diagnostic images accompany that listing, read them alongside the report and product imagery as supplementary context, not as a replacement for the setting specification.
A setting described as "for 1 ct center diamond" is a scale reference rather than a universal fit statement. Diamonds with the same carat weight can have different millimeter dimensions and outlines. The
head styles and structures used in ring designs shape this comparison, but a diamond slightly outside a familiar carat figure can still work when its actual dimensions fall within the mounting's capacity.
|
Gather from the diamond page
|
Gather from the setting page
|
|
Shape and outline
|
Shapes the setting is made to accept
|
|
Carat weight
|
Published center-diamond size guidance or stated center size
|
|
Millimeter measurements
|
Head style and prong count
|
|
Length-to-width ratio, when applicable
|
Gallery and side-profile images
|
|
Girdle, depth, and report details
|
Ring width, setting height, and stated production information
|
|
Video, high-resolution images, and any diagnostic images supplied
|
Wedding-band or alternative-view images, if shown
|
1. Confirm That the Shape Matches the Head
The head must be made for the selected shape because its notches and seat follow a particular girdle outline. A round head is formed for a circular diamond, whereas a square head, oval basket, or pear-shaped seat requires different geometry and support locations. The distinct outlines of
diamond shapes determine where a head needs support for corners and points.
Platinum Valoria Petite Six Prong Solitaire Engagement Ring
Where provided, the setting page's "Shape(s) Center Can Be Set With" field is the relevant specification. A
solitaire engagement ring may use a head intended for one center shape or may be offered with shape-specific variations. By contrast, the center outline in
three-stone engagement rings must work with the side-diamond arrangement as well as the head. In each case, the page specification, rather than a photograph, determines the intended shape allowance.
A ring can look broad enough for an oval or cushion while its seat is made for a round diamond. Some settings are engineered for more than one shape, but the model specification or a consultant's confirmation should state that allowance. Do not infer a shape conversion from similar carat weights or a favorable top-view image.
Shape questions to settle before ordering
- Does the model explicitly accept the selected shape?
- For a cushion diamond, do the square or rectangular measurements correspond with the outline accepted by the setting?
- For an oval, pear, marquise, or emerald cut, does the head accommodate the selected length-to-width profile?
- For a diamond with a point or corners, does the head provide support at those locations?
2. Compare Millimeter Dimensions, Not Only Carat Weight
Carat weight measures mass, whereas a setting holds the diamond at its girdle and must accommodate its physical dimensions. The report measurement line therefore supplies the more direct fit information because a carat figure and visible dimensions do not move in lockstep. Compare the
diamond measurements reported for each diamond before assessing fit.
Platinum Custom Three Stone Diamond Engagement Ring with Tapered Baguettes
For a round diamond, average the minimum and maximum diameter. A report showing 6.40–6.43 × 3.98 mm describes an average diameter of about 6.42 mm and a total depth of 3.98 mm. For an oval, emerald cut, radiant, pear, or marquise, record both length and width, then consider the ratio as part of the outline. Two 1.00-carat ovals can have different proportions, so a head suitable for one may not suit the other.
Dimensions also change the relationship between the center diamond and the mounting. A narrow solitaire may create a different balance with a spread diamond than with a deeper diamond of the same weight. In a halo or three-stone design, small changes in length or width can alter the space between the center diamond, adjacent diamonds, and metal.
|
Diamond type
|
Measurement to record
|
Compatibility question
|
|
Round
|
Average diameter
|
Does the head accept this diameter without an oversized or undersized seat?
|
|
Oval, pear, marquise
|
Length and width
|
Does the setting follow the intended outline and ratio rather than only the carat weight?
|
|
Emerald, radiant, rectangular cushion
|
Length, width, and corner geometry
|
Is the seat made for the rectangle and its particular proportions?
|
|
Princess, square cushion, Asscher
|
Length and width, plus corner position
|
Does the head align with the square outline and protect each corner?
|
3. Treat the Published Carat Range as a Boundary
Published center-diamond size guidance marks the interval for which the manufacturer expects the head, shoulders, and overall proportions to work. A setting described as "for 1 ct center diamond" may accommodate more than one exact weight, but it may not suit a diamond substantially above or below that scale. Compare the selected diamond with the model's dimensional constraints before relying on carat weight alone.
ENGAGEMENT RING SEARCH
Item Code: 31883-100
18k White Gold Tacori 2620RDP Dantela Crown Diamond Engagement Ring (0.25ctw, For 1ct Center Diamond)
Price:
$4,990
*Center diamond not included in price
Item Code: 34489
14k White Gold Two Tone Verragio Tradition TR150R4-2T Diamond 4 Prong Engagement Ring with Rose Gold Inlay
Price:
$3,860
*Center diamond not included in price
Item Code: 32813
18k White Gold Simon G. MR1394 Fabled Diamond Engagement Ring
Price:
$3,190
*Center diamond not included in price
Item Code: 1991
Platinum Vatche U-113 6-Prong Solitaire Engagement Ring
Price:
$2,100
*Center diamond not included in price
A diamond near the upper limit may warrant an individual review when it has a broad spread, an elongated outline, very thick girdle or unusual depth. A deep diamond can sit differently in the head from a shallower diamond of the same weight. Fixed side diamonds, a close-fitting halo, and closely defined gallery work leave less room for variation than an open, adaptable design.
When the diamond falls outside the stated guidance, a different head may be available or another model may be more suitable. A plain solitaire can allow more flexibility than a design with fixed side diamonds, a defined halo perimeter, or model-specific construction. The selected diamond's dimensions, not the carat figure alone, determine whether a possible adjustment maintains the intended proportion.
4. Check the Head Style and Diamond Height Together
The head receives and holds the diamond. It may be a prong basket, a cathedral head supported by arches from the shank, a bezel, a halo frame, or a three-stone structure. Its height determines how far the diamond rises above the shank, how much of the side remains exposed, and how closely a straight wedding band can approach.
A high prong setting places the diamond above the ring and leaves an open side view, which can catch on clothing or gloves more readily than a lower profile. A
bezel setting surrounds the girdle with metal for a more protected profile, while a partial bezel leaves part of the side visible. In
halo engagement rings, center dimensions and frame spacing are especially interdependent.

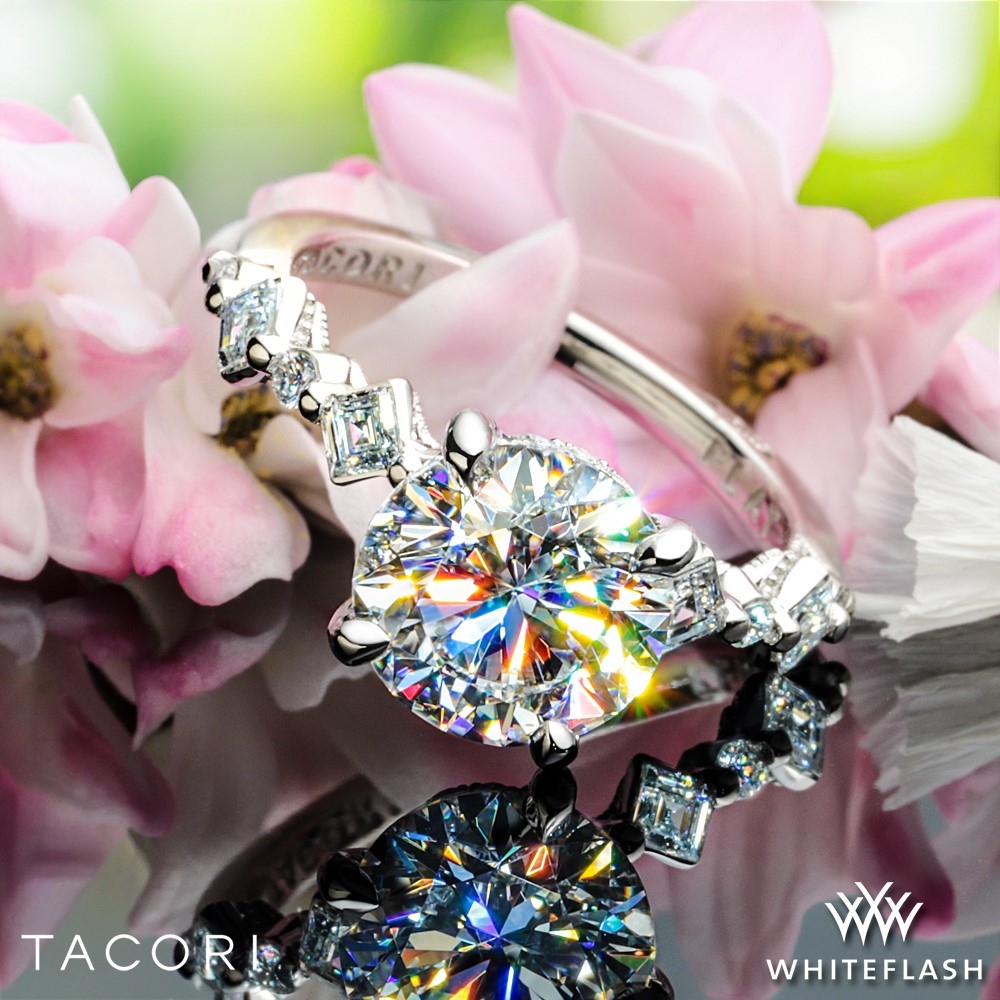

Platinum Tacori Sculpted Crescent Round Solitaire Engagement Ring
Head depth must correspond with diamond depth. A very deep diamond can require a deeper seat than a shallow diamond, and a large elongated diamond in a low basket needs clearance between its pavilion and the gallery. Top, side, and three-quarter images reveal different parts of that relationship: the top view shows the outline and prong locations, the side view shows head height and gallery construction, and the three-quarter view clarifies how the shoulders meet the head.
5. Confirm Prong Placement, Coverage, and Proportion
A prong begins as a vertical metal post from the base of the head. The jeweler prepares a seat in each prong and secures the diamond at the girdle. A properly positioned prong lies flush with the diamond and does not cover the table facet. The layout and coverage of
prong settings should correspond with the ring's design.
Prong count affects both the visible frame and the metal coverage around a round diamond. Four-prong and six-prong heads are common: four prongs leave more of the diamond exposed and can give the outline a slightly squarer frame, while six prongs create a more circular pattern. Either layout can work when the position and scale correspond with the selected diamond and the design's construction.
14k White Gold Timeless 6 Prong Solitaire Engagement Ring
Prongs should land at locations that secure the outline without obscuring attractive diamond features or leaving an exposed edge unsupported. In a three-stone setting, the center prongs and side diamonds also need enough separation for the elements to remain distinct rather than crowding the center girdle. A top-view image helps assess that spacing, while the setter can determine the finished seat and prong proportion.
|
Head question
|
What to inspect
|
|
Number of prongs
|
Does the count suit the diamond's size, shape, and intended face-up view?
|
|
Position of prongs
|
Do they land at structurally useful points without covering the table or creating uneven visual weight?
|
|
Prong scale
|
Are the prongs substantial enough to secure the diamond without overwhelming a smaller center?
|
|
Setting height
|
Does the profile suit the intended routine and keep the diamond clear of the gallery structure?
|
|
Relationship to side diamonds
|
In a three-stone or halo design, does the center sit cleanly without crowding adjacent diamonds or metal?
|
6. Protect Points and Corners Where the Shape Requires It
A rounded outline does not place stress in the same locations as an outline with acute points or square corners. Princess, pear, marquise, and heart-shaped diamonds have points or corners that can be more vulnerable to impact. The setting needs to address those locations directly rather than treating every outline as though it had the same support needs.
V-tip prongs secure and protect the corners or points of shapes such as princess, pear, and marquise diamonds. The V-shaped metal tip covers the point more completely than a rounded prong, but its alignment must match the actual point and its visible metal becomes part of the finished design. For an emerald cut, Asscher, radiant, or square cushion, inspect how the head reaches the corners. Corner prongs, tab prongs, a bezel, and a partial bezel are possible constructions, depending on the head design.
BROWSE LAB GROWN DIAMONDS
1.06 D VVS1 Round Ideal
Precision Lab Diamond
$1,326
|
|
| Light Perf. |
|
| Polish |
|
| Symmetry |
|
| Depth % |
|
| Table % |
|
| Crown Angle |
|
| Star |
|
| Pavilion Angle |
|
| Crown % |
|
| Lower Girdle |
|
| Measurements |
|
| L/W Ratio |
|
| Fluorescence |
|
| Eye Clean |
|
|
View Details
|
|
1.06 D VVS1 Round Ideal
Precision Lab Diamond
$1,326
|
|
| Light Perf. |
|
| Polish |
|
| Symmetry |
|
| Depth % |
|
| Table % |
|
| Crown Angle |
|
| Star |
|
| Pavilion Angle |
|
| Crown % |
|
| Lower Girdle |
|
| Measurements |
|
| L/W Ratio |
|
| Fluorescence |
|
| Eye Clean |
|
|
View Details
|
|
1.08 D VVS2 Round Ideal
Precision Lab Diamond
$1,030
|
|
| Light Perf. |
|
| Polish |
|
| Symmetry |
|
| Depth % |
|
| Table % |
|
| Crown Angle |
|
| Star |
|
| Pavilion Angle |
|
| Crown % |
|
| Lower Girdle |
|
| Measurements |
|
| L/W Ratio |
|
| Fluorescence |
|
| Eye Clean |
|
|
View Details
|
|
1.08 D VVS1 Round Ideal
Precision Lab Diamond
$1,340
|
|
| Light Perf. |
|
| Polish |
|
| Symmetry |
|
| Depth % |
|
| Table % |
|
| Crown Angle |
|
| Star |
|
| Pavilion Angle |
|
| Crown % |
|
| Lower Girdle |
|
| Measurements |
|
| L/W Ratio |
|
| Fluorescence |
|
| Eye Clean |
|
|
View Details
|
|
Elongated pointed shapes require alignment as well as coverage. A pear's point should be supported and centered, while a marquise needs symmetrical support at both points and should sit straight in the head. A direct top view can reveal an unresolved alignment issue before the ring reaches the final stages of production.
7. Review the Gallery, Side Profile, and Wedding-Band Clearance
Compatibility extends beyond the top view. The gallery is the metal structure beneath the diamond, and a gallery rail is the horizontal element joining the prongs to form the basket around the center diamond. Its height and width affect cleaning access, diamond position, and the distance between the engagement ring and a wedding band.
A low, open gallery may let a straight band sit near the shank. A
hidden halo or taller basket can leave a visible gap with a flat wedding band because metal occupies the space above the shank. A gap is a design outcome rather than a defect. It can remain part of the intended profile or be addressed with a contoured
wedding band.
Side-view imagery, ideally with the intended wedding band beside the engagement ring, is needed for this check. Confirmation is particularly useful for tall heads, cathedral shoulders, hidden halos, wide side diamonds, and settings that rise sharply from the shank. Diamond depth may also change how high the center must sit above the gallery.
Platinum Valoria Petite Pave Diamond Wedding Set
Gallery and band-fit questions
- Is the gallery low enough for the intended straight band, or will the rings be separated by a gap?
- Does the selected diamond's depth change how high it must sit in the head?
- Do hidden halo, under-rail, or side-diamond details add height or width beneath the center?
- If a gap remains, would a contoured wedding band produce the preferred profile?
8. Confirm Model-Specific Restrictions Before Checkout
The final review includes both construction and order details. A setting can have restrictions related to a fixed head, included side diamonds, halo dimensions, model specifications, or the manufacturing process. A plain solitaire may accept a modification that is not available when a design depends on a precise halo perimeter or matched side diamonds.
The exact model's full specification and product notes should establish accepted shapes, center-diamond size guidance, setting type, and stated production time. For a setting with side diamonds, the selected center diamond's actual measurements determine whether the planned relationship among the three diamonds can be preserved. A ring size that differs substantially from the page example may also change the proportions or the center-diamond size guidance.
A consultant or jeweler with the diamond's report number and setting item number can evaluate the exact pairing. The useful request includes both product links, diamond measurements, desired ring size, wedding-band plan, and any preference for setting height or prong style. Supplying those details gives the setting team the information needed to ensure compatibility.
A Short Pre-Order Compatibility Worksheet
The following record consolidates the details used in a compatibility review. Mark a line as resolved only when it agrees with the exact diamond and setting specifications, rather than with a generic carat or shape description.
|
Check
|
Record
|
Resolved?
|
|
1. Shape
|
Diamond shape and the setting's allowed center shapes
|
Yes / No
|
|
2. Measurements
|
Diameter, or length × width × depth
|
Yes / No
|
|
3. Center range
|
Diamond carat weight and the setting's published size guidance
|
Yes / No
|
|
4. Head style
|
Prong, bezel, halo, or three-stone structure
|
Yes / No
|
|
5. Prong layout
|
Count, location, scale, and table clearance
|
Yes / No
|
|
6. Point or corner protection
|
V-tip, corner prong, tab, bezel, or other support
|
Yes / No
|
|
7. Gallery and band fit
|
Setting height, clearance, and intended wedding band
|
Yes / No
|
|
8. Model limits
|
Product-page notes, production details, and confirmed exceptions
|
Yes / No
|
An unresolved line merits review before the order is released to production, particularly when the diamond approaches a listed size boundary, has an elongated or unusual outline, or is paired with fixed side diamonds or a close-fitting halo. The worksheet also gives the setting team a concise record of the dimensions and design preferences that affect the proposed configuration.

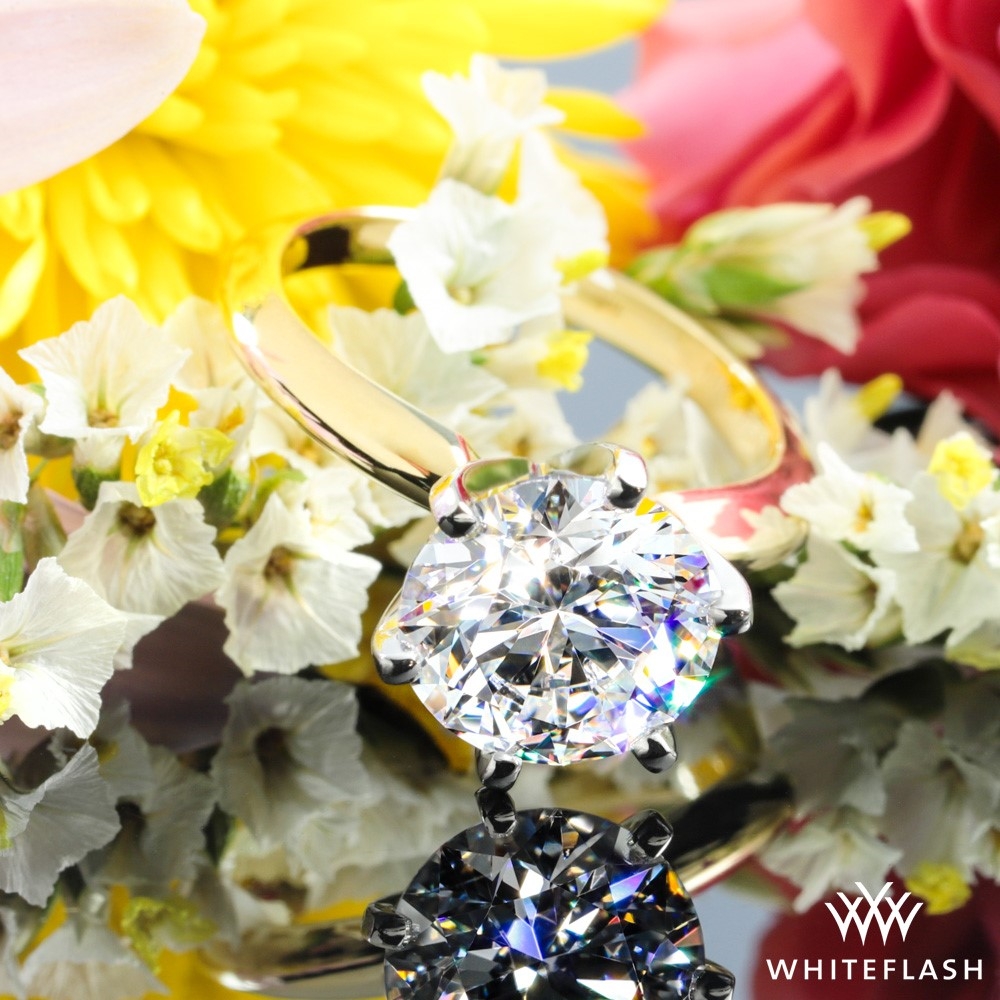

18k Yellow Gold Classic 6 Prong Solitaire Engagement Ring
Frequently Asked Questions
Can any diamond of the right carat weight fit a setting?
No. Carat weight is only one compatibility factor. The selected diamond's shape, millimeter dimensions, depth, outline, and vulnerable points must correspond with the setting's head and published center-diamond size guidance. The exact product page and review of the actual diamond provide the reliable answer.
Why do millimeter measurements matter more than carat weight for setting fit?
A setting holds the diamond at its girdle while the pavilion extends below it. Diamonds of the same carat weight can have different diameters or length-to-width ratios, causing them to sit differently in the same head. Millimeter measurements describe the dimensions the setting must accommodate.
Can a round setting hold an oval diamond?
Only when the exact setting is specified for both shapes or a qualified setting team confirms that it can be made for the oval. A standard round head is designed around a circular diamond, and similar carat weights do not necessarily make it suitable for an oval. The setting's accepted-shape field should govern the decision.
Do I need V-tip prongs for a pointed diamond?
V-tip prongs are a common way to secure and protect points on princess, pear, and marquise diamonds. The appropriate construction depends on the shape, head design, and desired metal coverage. The setting specification or a consultant can confirm the proposed protection before ordering.
Will a straight wedding band sit flush with every engagement ring?
No. Head style, gallery height, basket width, decorative details, and diamond depth can create a gap between an engagement ring and a straight band. Review both rings from the side before production, then consider a contoured band when a close fit is preferred. Flush fitting bands should be ordered at the same time of the engagement ring to insure a good match.

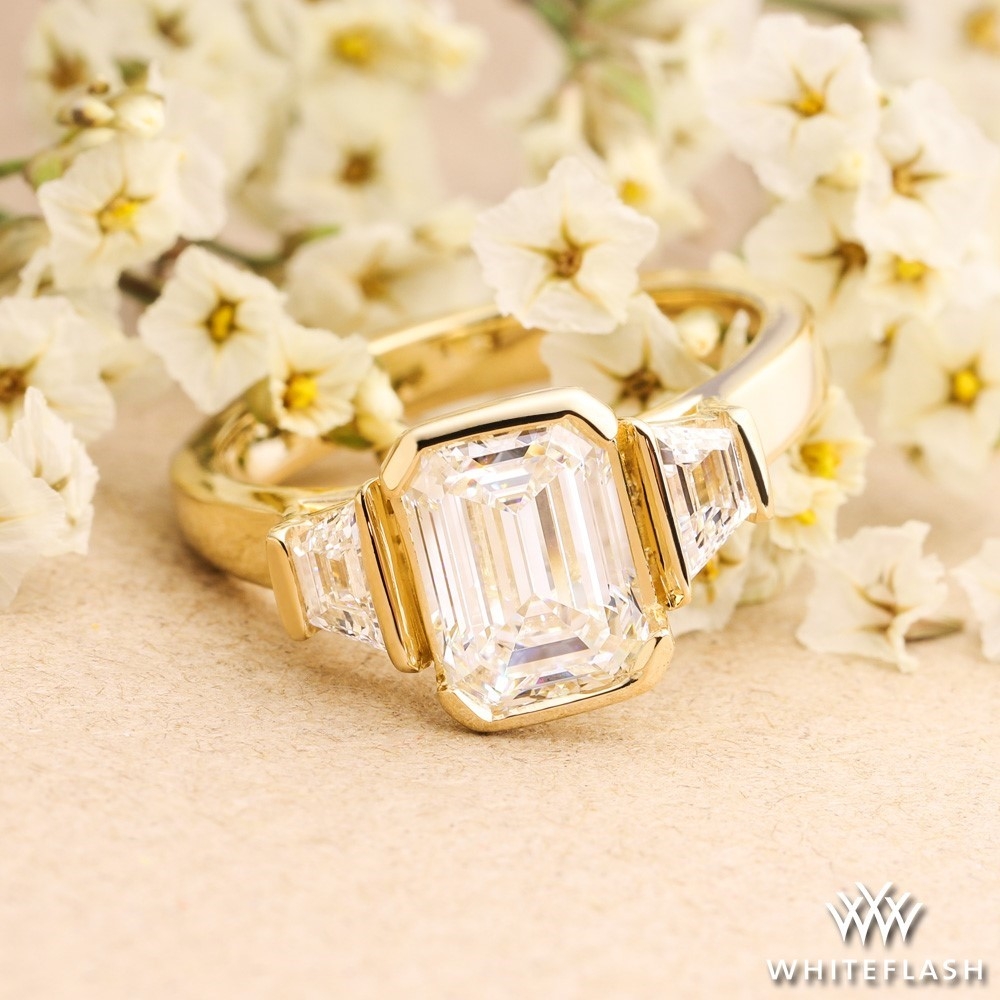

14k Yellow Gold Custom Emerald Diamond Ring with Trapezoid Side Stones
